Reducing 900 lines of github workflow to 200 lines ๐Ÿ˜Œ

ยท 17 min read
Saintmalik

hello everyone, okay, so i did something recently with github action, rewrote and optimized a workflow of 900+ lines back to 200+

900 lines of workflow
200 lines of workflow

i was able to do that using github reuseable workflow, so github reusable workflow allows you to declare some of your jobs as a standalone workflow and use it in every other workflow instead of you having to rewrite them each time you need them.

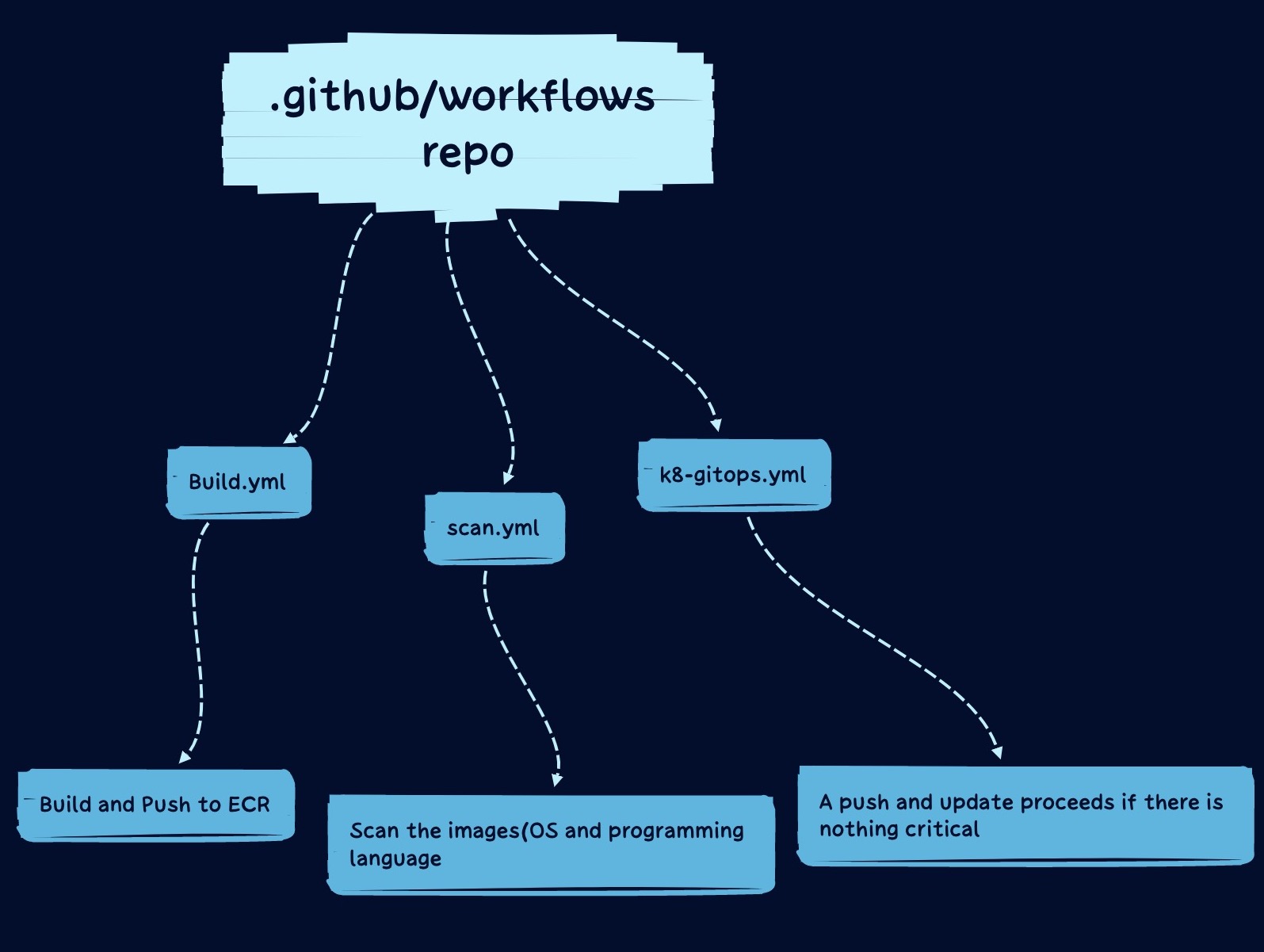

here is a good scenerio of this, lets assume you are trying to build, tag, push and scan a docker image for a microservice architecture, just like this

github workflow

And then, the microservices are hosted in the folder level on a single repo under the branch "main"

so if you have three services, then you will find yourself rewriting for these services each, hence there is repitition and you would be zeroed out on DRY(do not repeat yourself).

so lets jump into it;

Build, Tag, Push images to ECR Workflowโ€‹

we would start by writing the build.yml workflow file which provisions for the building, tagging and pushing of our images to ECR.

so to write a workflow that is being called in another workflow you have to start with

on:
workflow_call:

unlike the the workflow_dispatch one you are familiar with, so after defining the workflow type which is workflow_call.

you might need to pass some inputs or secret into your workflow and this can be done by declaring this inputs field and secrets, like this

    inputs:
servicename:
required: true
type: string

secrets:
accessidaws:
required: true
secretkeyaws:
required: true
awsregion:
required: true

you would notice i declare one single input value which is servicename, this is how i can declare the microservice folder name that i want the workflow to work with and the secrets field has three values namely, accessidaws, secretkeyaws, awsregion.

this three secrets are important since i am pushing to a private ECR repository, so which ever secrets you need in your workflow can be passed by declaring them under the secrets field

and the required: field which i set the value to true, makes sure the workflow doesnt start if the secrets are not available or passed.

so now, lets start writing the jobs field that performs the tasks we need, i believe you are familiar to github workflow jobs? if yes then nothing changes here too.

jobs:
build-images:
runs-on: ubuntu-latest

outputs:
sha: ${{ steps.vars.outputs.sha_short }}
output3: ${{ steps.changed-files-specific.outputs.any_changed }}

steps:
- uses: actions/checkout@v3
with:
fetch-depth: 0 # OR "2" -> To retrieve the preceding commit.

- name: Check if there are any changes made in folders
id: changed-files-specific
uses: tj-actions/changed-files@v31
with:
files: |
${{ inputs.microservice }}/**
- name: Proceed if there is any changes, Start by configuring AWS credentials
if: steps.changed-files-specific.outputs.any_changed == 'true'
uses: aws-actions/configure-aws-credentials@v1
with:
aws-access-key-id: ${{ secrets.aws_accessid }}
aws-secret-access-key: ${{ secrets.aws_secretkey }}
aws-region: ${{ secrets.aws_region }}

- name: Login to Amazon ECR
if: steps.changed-files-specific.outputs.any_changed == 'true'
id: login-ecr
uses: aws-actions/amazon-ecr-login@v1

- name: Shorten the commit SHA output
if: steps.changed-files-specific.outputs.any_changed == 'true'
id: vars
run: echo "::set-output name=sha_short::$(git rev-parse --short HEAD)"

- name: Build, tag, and push image to Amazon ECR
if: steps.changed-files-specific.outputs.any_changed == 'true'
env:
ECR_REGISTRY: ${{ steps.login-ecr.outputs.registry }}
ECR_REPOSITORY: ${{ inputs.microservice }}
IMAGE_TAG: latest-${{ steps.vars.outputs.sha_short }}
run: |
cd $ECR_REPOSITORY
docker build -t $ECR_REPOSITORY .
docker tag $ECR_REPOSITORY:latest $ECR_REGISTRY/$ECR_REPOSITORY:$IMAGE_TAG
docker push $ECR_REGISTRY/$ECR_REPOSITORY:$IMAGE_TAG

so you know as usual, you have to checkout and that's what the step: actions/checkout@v3 does, the step: Check if there are any changes made in folders is what i use in determining what service would be built.

if you dont forget, we have three microservices hosted in seperate folders and not a seperate repo, hence there is a need to check which of these folders has changes pushed to them.

That way we won't be running the workflow blindly, hence we would just run it against folders that has the changes alone.

Now you will see in that same step, i passed an input in ${{ inputs.servicename }}/**, the servicename is an input that is declared manually, so if i passed the value "shop" to it

the outcome will be 'shop/' , this means we check for changes in the shop folder deeply with the ```'/'```

Coming to the next step Proceed if there is any changes, Start by configuring AWS credentials, so if there is any changes in the shop/ service folder then this workflow run and if there is no changes this workflow doesnt run.

if: steps.changed-files-specific.outputs.any_changed == 'true'

In github workflow you can pass the value of a certain step into another step, so if there is any changed files in the microservice folder, the step returns a true value which is what we are comparing now to decide if the following workflow step proceeds or not.

Proceeding, you would see how i passed the secrets needed by the job step, which is configuring the aws creds.

aws-access-key-id: ${{ secrets.accessidaws }}
aws-secret-access-key: ${{ secrets.secretkeyaws }}
aws-region: ${{ secrets.awsregion }}

So the secrets values we declared form the start of the workflow is getting used now, and its passed like this ${{ secrets.YOURSECRETVALUES }}.

I believe you get the scope of the workflow now, after the checking for changes in the folder.

If there is any, it configures aws creds, login into aws ecr, get a shortened version of your github sha and after that we build, tag and push the image to ecr.

One more thing, we would be dealing with outputs on reusable workflows, because we need the image that we just built and push to ecr to get scanned, hence we need to pass the output of the build workflow to another.

And to do this, you have to declare the outputs outside the jobs level to make it accessible to other workflows

so in the scenerio of this workflow, we need to pass three outputs which are the

  • github sha,
  • the microservice name
  • the value of our folder changes check

Things are treated in stages in workflow, you probably expecting us to pass the output straight up using jobs.steps.whateverstepid, you know.

But it doesnt work that way, so you need to first pass the outputs from the steps level to the jobs level like this

jobs:
build-push-images:
runs-on: ubuntu-latest

outputs:
gitsha: ${{ steps.vars.outputs.sha_short }}
folderchanges: ${{ steps.changed-files-specific.outputs.any_changed }}

steps:
- uses: actions/checkout@v3
......

So now we have the value of the github sha from the steps that shortens the github sha been passed into the jobs outputs.

Which can now be refenced as jobs.build-images.outputs.gitsha and the folder changes check value too.

for the microservice name outputs, all we have to do is just add ${{ inputs.servicename }}, since we are passing the value manually as input, so here will be final look of the outputs of the reusable workflow

    outputs:
shashort:
description: "pass the github sha to the next workflow"
value: ${{ jobs.build-images.outputs.gitsha }}
servicename:
description: "pass the microservice name other workfow"
value: ${{ inputs.servicename }}
foldercheck:
description: "pass the github sha to the next workflow"
value: ${{ jobs.build-images.outputs.folderchanges }}
note

Also there is thing with github action you cant pass an output from job1 to job3, to use the output of job1 in job3, you have to pass the output to job2 first and it would be accessible to job3.

You would see the usage soon, stay glued

So here is the full workflow for the build.yml file

.github/workflows/build.yml
on:
workflow_call:
inputs:
servicename:
required: true
type: string

secrets:
accessidaws:
required: true
secretkeyaws:
required: true
awsregion:
required: true

outputs:
shashort:
description: "pass the github sha to the next workflow"
value: ${{ jobs.build-images.outputs.gitsha }}
servicename:
description: "pass the microservice name other workfow"
value: ${{ inputs.servicename }}
foldercheck:
description: "pass the github sha to the next workflow"
value: ${{ jobs.build-images.outputs.folderchanges }}

jobs:
build-push-images:
runs-on: ubuntu-latest

outputs:
gitsha: ${{ steps.vars.outputs.sha_short }}
folderchanges: ${{ steps.changed-files-specific.outputs.any_changed }}

steps:
- uses: actions/checkout@v3
with:
fetch-depth: 0 # OR "2" -> To retrieve the preceding commit.

- name: Check if there are any changes made in folders
id: changed-files-specific
uses: tj-actions/changed-files@v31
with:
files: |
${{ inputs.microservice }}/**
- name: Proceed if there is any changes, Start by configuring AWS credentials
if: steps.changed-files-specific.outputs.any_changed == 'true'
uses: aws-actions/configure-aws-credentials@v1
with:
aws-access-key-id: ${{ secrets.aws_accessid }}
aws-secret-access-key: ${{ secrets.aws_secretkey }}
aws-region: ${{ secrets.aws_region }}

- name: Login to Amazon ECR
if: steps.changed-files-specific.outputs.any_changed == 'true'
id: login-ecr
uses: aws-actions/amazon-ecr-login@v1

- name: Shorten the commit SHA output
if: steps.changed-files-specific.outputs.any_changed == 'true'
id: vars
run: echo "::set-output name=sha_short::$(git rev-parse --short HEAD)"

- name: Build, tag, and push image to Amazon ECR
if: steps.changed-files-specific.outputs.any_changed == 'true'
env:
ECR_REGISTRY: ${{ steps.login-ecr.outputs.registry }}
ECR_REPOSITORY: ${{ inputs.microservice }}
IMAGE_TAG: latest-${{ steps.vars.outputs.sha_short }}
run: |
cd $ECR_REPOSITORY
docker build -t $ECR_REPOSITORY .
docker tag $ECR_REPOSITORY:latest $ECR_REGISTRY/$ECR_REPOSITORY:$IMAGE_TAG
docker push $ECR_REGISTRY/$ECR_REPOSITORY:$IMAGE_TAG

Scan Images Workflowโ€‹

Now that we are done with the building, tagging and pushing image reusable workflow, its time to write the one for scanning according to the workflow diagram shared from the start.

So in this workflow, we would be needing three inputs, the servicename, the github sha and the folder changes check and this are the values we've set as outputs from the build.yml workflow

    inputs:
servicename:
required: true
type: string
githubsha:
required: true
type: string
foldercheck:
required: true
type: string

secrets:
accessidaws:
required: true
secretkeyaws:
required: true
awsregion:
required: true

You should be wondering why we still need secrets again in this workflow, this is because our image is in private repository, hence we can pull it ans can.

Also i am using trivy image scanner here, you can choose to use anyone outhere, and here is the job workflow

jobs:
image-scan:
runs-on: ubuntu-latest

steps:
- uses: actions/checkout@v3
with:
fetch-depth: 0 # OR "2" -> To retrieve the preceding commit.

- name: Run Trivy vulnerability scanner
uses: aquasecurity/trivy-action@master
with:
image-ref: 'YOURIAMID.dkr.ecr.YOURAWSREGION.amazonaws.com/${{ inputs.servicename }}:latest-${{ inputs.githubsha }}'
format: 'json'
env:
AWS_ACCESS_KEY_ID: ${{ secrets.accessidaws }}
AWS_SECRET_ACCESS_KEY: ${{ secrets.secretkeyaws }}
AWS_DEFAULT_REGION: ${{ secrets.awsregion }}

So as usual, you have to checkout first, followed by the trivy scan step, you have to replace YOURIAMID with your own and YOURAWSREGION to your repo region.

You would see i passed the value ${{ inputs.servicename }} and {{ inputs.githubsha }}, this are gotten from the output of my initial workflow which is build.yml, you would see how i will pass the values soon in the main.yml workflow.

Here is the full workflow for the scan section:

.github/workflows/scan.yml
on:
workflow_call:
inputs:
servicename:
required: true
type: string
githubsha:
required: true
type: string
foldercheck:
required: true
type: string

secrets:
accessidaws:
required: true
secretkeyaws:
required: true
awsregion:
required: true

outputs:
githubSHA:
description: "pass the github sha to the next workflow"
value: ${{ inputs.githubsha }}
servicename:
description: "pass the github sha to the next workflow"
value: ${{ inputs.microservice }}
foldercheck:
description: "pass the github sha to the next workflow"
value: ${{ inputs.foldercheck }}

jobs:
image-scan:
runs-on: ubuntu-latest

steps:
- uses: actions/checkout@v3
with:
fetch-depth: 0 # OR "2" -> To retrieve the preceding commit.

- name: Run Trivy vulnerability scanner
uses: aquasecurity/trivy-action@master
with:
image-ref: '776616077494.dkr.ecr.us-west-2.amazonaws.com/${{ inputs.microservice }}:latest-${{ inputs.githubsha }}'
format: 'json'
env:
AWS_ACCESS_KEY_ID: ${{ secrets.aws_accessid }}
AWS_SECRET_ACCESS_KEY: ${{ secrets.aws_secretkey }}
AWS_DEFAULT_REGION: ${{ secrets.aws_region }}

K8s GitOps Image Updateโ€‹

Yeah, if you happen to do gitops, you definately not going to update the images deployment yaml file manually.

So here is the workflow that handles that, here again, we are declaring some inputs, same as the one we declared in scan.yml

This is where the notice i gave earlier makes more sense, i said we can only pass outputs from job A to job B and we cant pass outputs from job A to job C, but we can pass outputs from job A to job B and to job C.

Thats the only way it works, so the inputs i am declaring here are passed from the outputs of scan.yml and if you notice here the secrets values changed, yes, i will be needing the slack api token to get feedbacks from the push stage of the workflow.

Likewise github_token which allows my build to pull my existing deloyment file to do the awsome edits, and author email, to hold someone responsible, just for metadata sake anyway.

    inputs:
servicename:
required: true
type: string
githubsha:
required: true
type: string
foldercheck:
required: true
type: string

author_email:
required: true
github_apitoken:
required: true
slack_apitoken:
required: true
.github/workflows/k8-gitops.yml
on:
workflow_call:
inputs:
servicename:
required: true
type: string
githubsha:
required: true
type: string
foldercheck:
required: true
type: string

secrets:
deploy_email:
required: true
github_apitoken:
required: true
slack_apitoken:
required: true

jobs:
push-scanned-image:
runs-on: ubuntu-latest
env:
ECR_REPOSITORY: ${{ inputs.microservice }}
IMAGE_URI: https://raw.githubusercontent.com/YOURGITHUBUSERNAME/YOURGITHUBREPONAME/main/FOLDERNAME
IMAGE_TAG: latest-${{ inputs.githubsha }}
steps:
- uses: actions/checkout@v3
with:
fetch-depth: 0 # OR "2" -> To retrieve the preceding commit.
- name: Update Deployment file in cd-api for continous deployment
run: |
cd $ECR_REPOSITORY
curl --header "Authorization: token ${{ secrets.github_apitoken }}" \
--header 'Accept: application/vnd.github.v3.raw' \
--remote-name \
--location $IMAGE_URI/$ECR_REPOSITORY-deployment.yaml
sed -i_bkp 's/${{ env.ECR_REPOSITORY }}:.*/${{ env.ECR_REPOSITORY }}:${{ env.IMAGE_TAG }}/' ${{ env.ECR_REPOSITORY }}-deployment.yaml
- name: Push changed docker image file
uses: dmnemec/copy_file_to_another_repo_action@main
env:
API_TOKEN_GITHUB: ${{ secrets.github_apitoken }}
DEPLOY_EMAIL: ${{ secrets.author_email }}

with:
source_file: '${{ github.workspace }}/${{ env.ECR_REPOSITORY }}/${{ env.ECR_REPOSITORY }}-depl.yaml'
destination_repo: 'YOURGITHUBUSERNAME/YOURGITHUBREPONAME'
destination_folder: 'FOLDERNAME'
user_email: '${{ secrets.author_email }}'
user_name: 'DevOps Eng'
commit_message: "deploy for ${{ env.ECR_REPOSITORY }}-${{ env.IMAGE_TAG }}-${{ github.event.head_commit.message }}"

- name: Report Status
if: ${{ inputs.foldercheck == 'true' && always() }}
uses: ravsamhq/notify-slack-action@v1
with:
status: ${{ job.status }}
notify_when: 'failure,success'
notification_title: 'The Workflow for ${{ inputs.microservice }}-service has {status_message} and here is the commit message: " ${{ github.event.head_commit.message }}"'
message_format: '{emoji} *build, scan and push for ${{ inputs.microservice }} service* {status_message} in <{repo_url}|{repo}>'
footer: 'Linked to Repo <{repo_url}|{repo}>'
mention_users: 'UXXXXXXXX'
mention_users_when: 'failure,warnings'
# mention_groups: 'SXXXXXX'
mention_groups_when: 'failure,warnings'
env:
SLACK_WEBHOOK_URL: ${{ secrets.slack_apitoken }}

Now, if you have read the github action workflow documentation, you would notice a section discussion about inheriting secrets from other workflows, like secrets from workflow A can be inherited in workflow B, without you having to rewrite.

But here it wont work, the inherit value works if the secrets are being declared in the bash format of the reusable workflow jobs, just like this run: echo ${{ secrets.AWS_ACCESS_KEY_ID }}, read more here .

So thats all for the k8-gitops.yml, the workflow download the raw version of the deployment file, and then we use sed to replace the github sha, since thats what we are using for immutability and then push back to the repo and send sucess or failure feedback on slack.

Main workflow file, workflow callerโ€‹

And here we are, the last workflow file, the caller workflow, this workflow calls in all those resusable workflow.

so lets write the build, scan and push k8 deployment for the shop service.

To start the caller workflow, you have to start with regular workflow triggers, either push, pull request or workflow_dispatch

on:
push:
branches:
- main

After that we would start writing the jobs, the first job is building and pushing to ecr, so we would have something like this.

jobs:
shops-image-build:
name: Build & Push image for shops/
uses: ./.github/workflows/build.yml@main
with:
servicename: shops
secrets:
accessidaws: ${{ secrets.AWS_ACCESS_KEY_ID }}
secretkeyaws: ${{ secrets.AWS_SECRET_ACCESS_KEY }}
awsregion: ${{ secrets.AWS_REGION }}

We are caling the workflow ./.github/workflows/build.yml@main, this is because the workflow is hosted in the same repo as the main.yml workflow.

Else you might have to input the full repo url, something like this, username/repo/.github/workflows/build.yml@main .

As you know we declared one input and three secrets in the build.yml reusable workflow, so to pass this values into to the workflow, we can use the with syntax and secrets to pass in secrets

So as you can see in the above workflow, i have the servicename to be shops, thats the name of the microservice folder in my repository.

The servicename decides what microservice is being acted upon.

We've declared the build job, now its time for the scan job

  shops-image-scan:
if: needs.shops-image-build.outputs.foldercheck == 'true'
needs: shops-image-build
uses: ./.github/workflows/scan.yml@main
with:
servicename: ${{ needs.shops-image-build.outputs.servicename}}
githubsha: ${{ needs.shops-image-build.outputs.shashort }}
foldercheck: ${{ needs.shops-image-build.outputs.foldercheck }}
secrets:
accessidaws: ${{ secrets.AWS_ACCESS_KEY_ID }}
secretkeyawsy: ${{ secrets.AWS_SECRET_ACCESS_KEY }}
awsregion: ${{ secrets.AWS_REGION }}

And here in the scan job, you would notice we declared and if statement and also a need statement.

The if takes in needs.shops-image-build.outputs.foldercheck == 'true', this output is being passed down from the build.yml workflow

Passing outputs from a reusable workflow to another workflow is different from passing output from one steps to another or passing output from one jobs to another.

To pass outputs from one reusable workflow to another, you must have declared the output already in the workflow then pass it in by using needs.THEJOBNAME.outputs.OutPutNameFromReusableWorkflow.

for the needs: shops-image-build statement, we are doing this, because, we cant scan an image that isnt built and pushed to ecr, hence the need for making sure the jobs of shops-image-build gets secessful before the scan job can start.

So if a certain jobs of yours needs another jobs to progress, you can always do that using needs: JOBNAME and thats it.

You can see that we have three inputs being passed into the scan workflow and they are values passed from the build workflow which are the servicename, githubsha and the foldercheck

These three are essential for the scan workflow, hence the need to pass them across, and you see i used the needs syntax to pass the values.

going to the pushing to k8 deployment jobs, here is the workflow codes

  push-scanned-shops-image:
needs: shops-image-scan
uses: ./.github/workflows/k8-gitops.yml@main
with:
servicename: ${{ needs.shops-image-scan.outputs.servicename }}
githubsha: ${{ needs.shops-image-scan.outputs.githubSHA }}
foldercheck: ${{ needs.shops-image-scan.outputs.foldercheck }}
secrets:
github_apitoken: ${{ secrets.API_TOKEN_GITHUB }}
deploy_email: ${{ secrets.DEPLOY_EMAIL }}
slack_apitoken: ${{ secrets.ACTION_MONITORING_SLACK }}

as you can see we passed the servicename, githubsha and the foldercheck again, but this time, its being passed from the outputs of scan.yml workflow.

Thats because of the outputs of job A cant be used in job C but the outputs of job A can be passed to job B and from job B it would be passed to job C

That is how it works here, now you should have a workflow that looks exactly like this.

.github/workflows/main.yml
name: build, scan, push k8s deployment file
on:
push:
branches:
- main

# In a GitHub workflow you can use env either in jobs.<job_id>.env or in jobs.<job_id>.steps[*].env.

jobs:
shops-image-build:
name: Build & Push image for shops/
uses: ./.github/workflows/build.yml@main
with:
servicename: shops
secrets:
accessidaws: ${{ secrets.AWS_ACCESS_KEY_ID }}
secretkeyaws: ${{ secrets.AWS_SECRET_ACCESS_KEY }}
awsregion: ${{ secrets.AWS_REGION }}

shops-image-scan:
if: needs.shops-image-build.outputs.foldercheck == 'true'
needs: shops-image-build
uses: ./.github/workflows/scan.yml@main
with:
servicename: ${{ needs.shops-image-build.outputs.servicename}}
githubsha: ${{ needs.shops-image-build.outputs.shashort }}
foldercheck: ${{ needs.shops-image-build.outputs.foldercheck }}
secrets:
secrets:
accessidaws: ${{ secrets.AWS_ACCESS_KEY_ID }}
secretkeyawsy: ${{ secrets.AWS_SECRET_ACCESS_KEY }}
awsregion: ${{ secrets.AWS_REGION }}

push-scanned-shops-image:
needs: shops-image-scan
uses: ./.github/workflows/k8-gitops.yml@main
with:
microservice: ${{ needs.shops-image-scan.outputs.servicename }}
githubsha: ${{ needs.shops-image-scan.outputs.githubSHA }}
foldercheck: ${{ needs.shops-image-scan.outputs.foldercheck }}
secrets:
github_apitoken: ${{ secrets.API_TOKEN_GITHUB }}
deploy_email: ${{ secrets.DEPLOY_EMAIL }}
slack_apitoken: ${{ secrets.ACTION_MONITORING_SLACK }}

This workflow codes, will build, scan and update k8s deployment file for the shop service, and we can rewrite it to do the same thing for the remaining two services that we have.

Well, that's it folks! i hope you find this useful and helpful.


Comments
